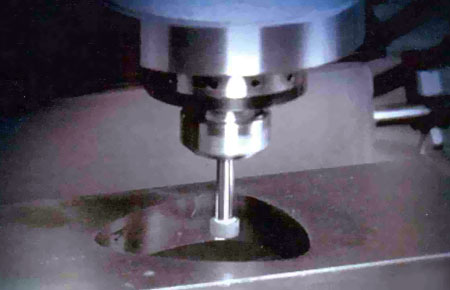

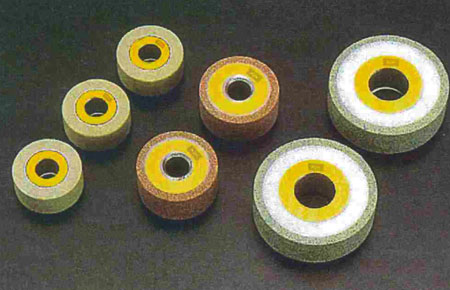

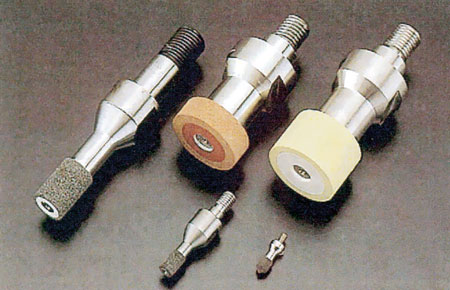

Small diameter vitrified / Resin bonded Diamond / PCBN wheels used for grinding and finishing the inside diameter (ID) of bores. Typically used on Jig grinders and Universal grinders, for hardened steel and super alloys internal grinding.

Applications:

* Internal Grinding Fuel Injection Nozzle Bore and Seat face

* Internal grinding of Valve Lifter Bore

* Internal Grinding of Automotive Bearing

* Internal Grinding of Power Steering Pump Stator

* Internal Grinding of Compressor Stator

Sizes :

* Wheel diameter from 4mm to 45mm

* Abrasive Depth from 5mm to 50mm

Advantages :

High stock removal rate, long dressing interval, low grinding cost per part, tightly controlled abrasive particle size distributions (PSD), standard sized ID wheels limitless custom sizes and configurations are available, both diamond and PCBN wheels with Standard and custom formulations for specific, applications, to maximize grinding quality with self-dressing properties is offered. Unlimited combinations of geometries, bond hardness and matrix structures can be produced.
